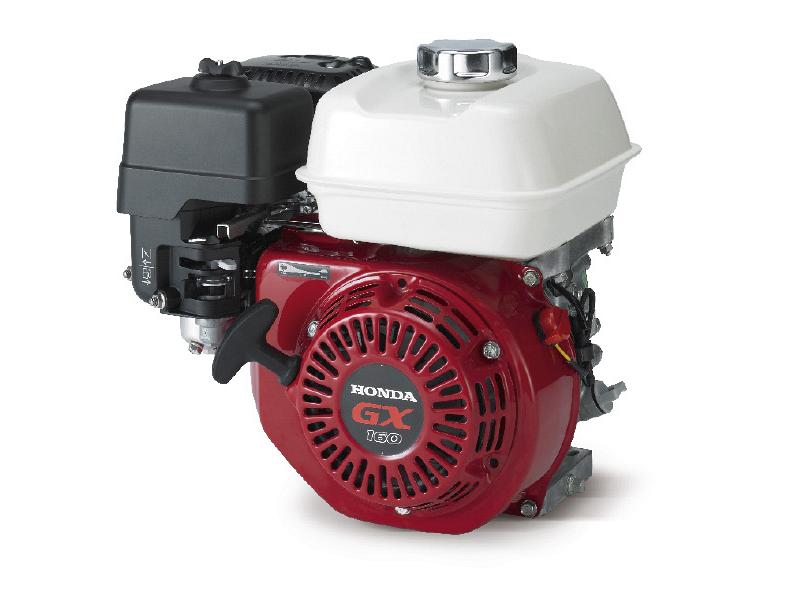

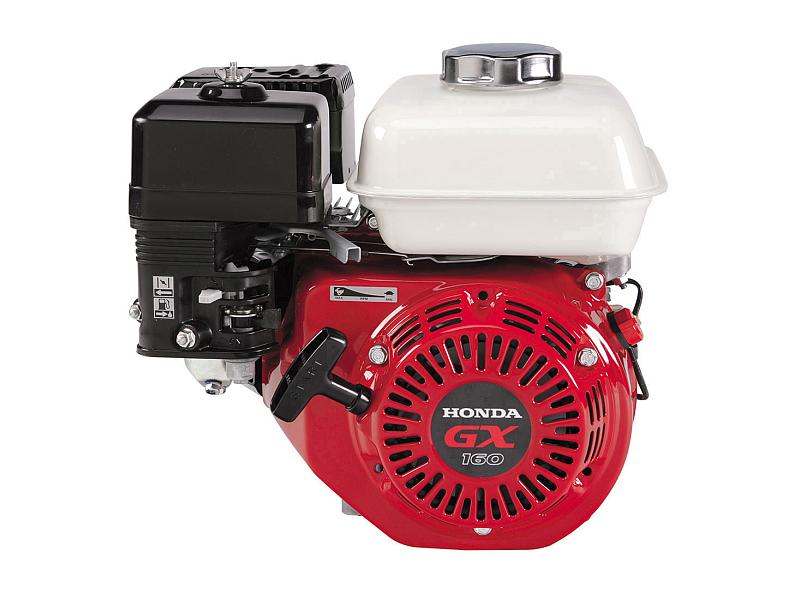

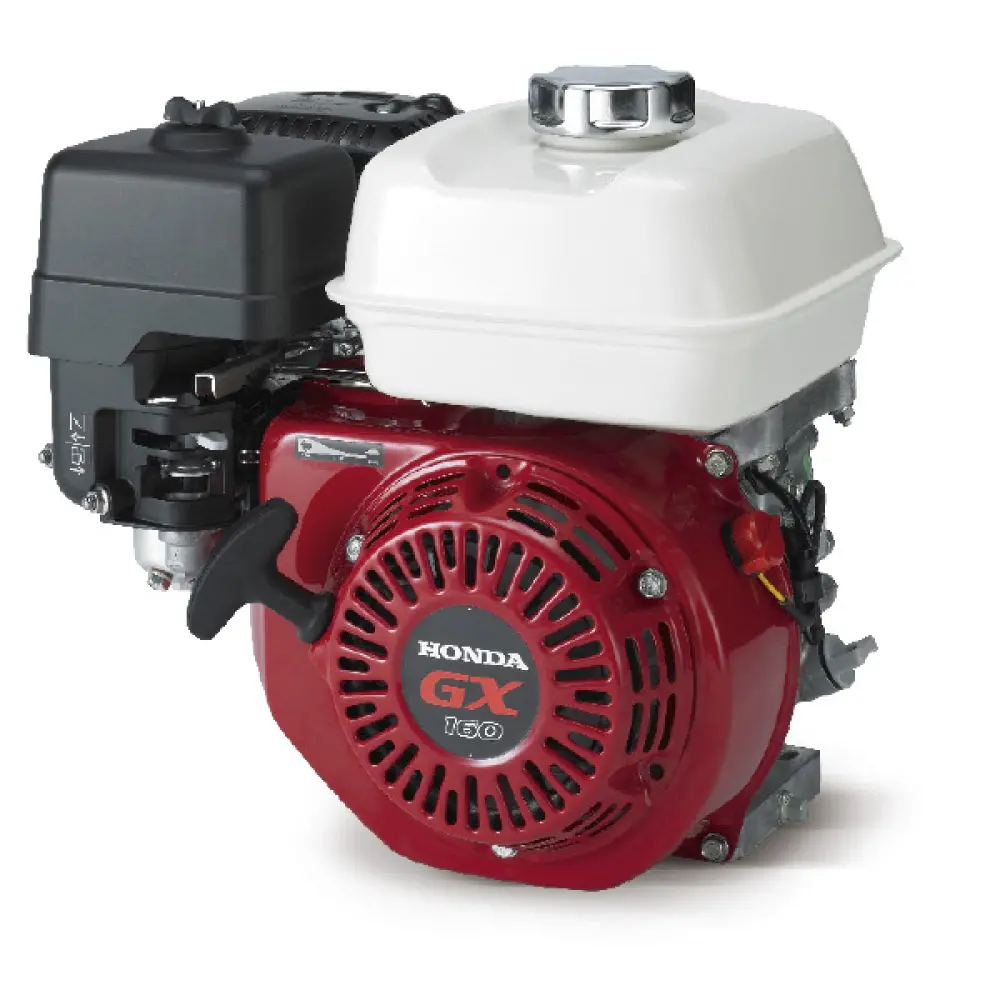

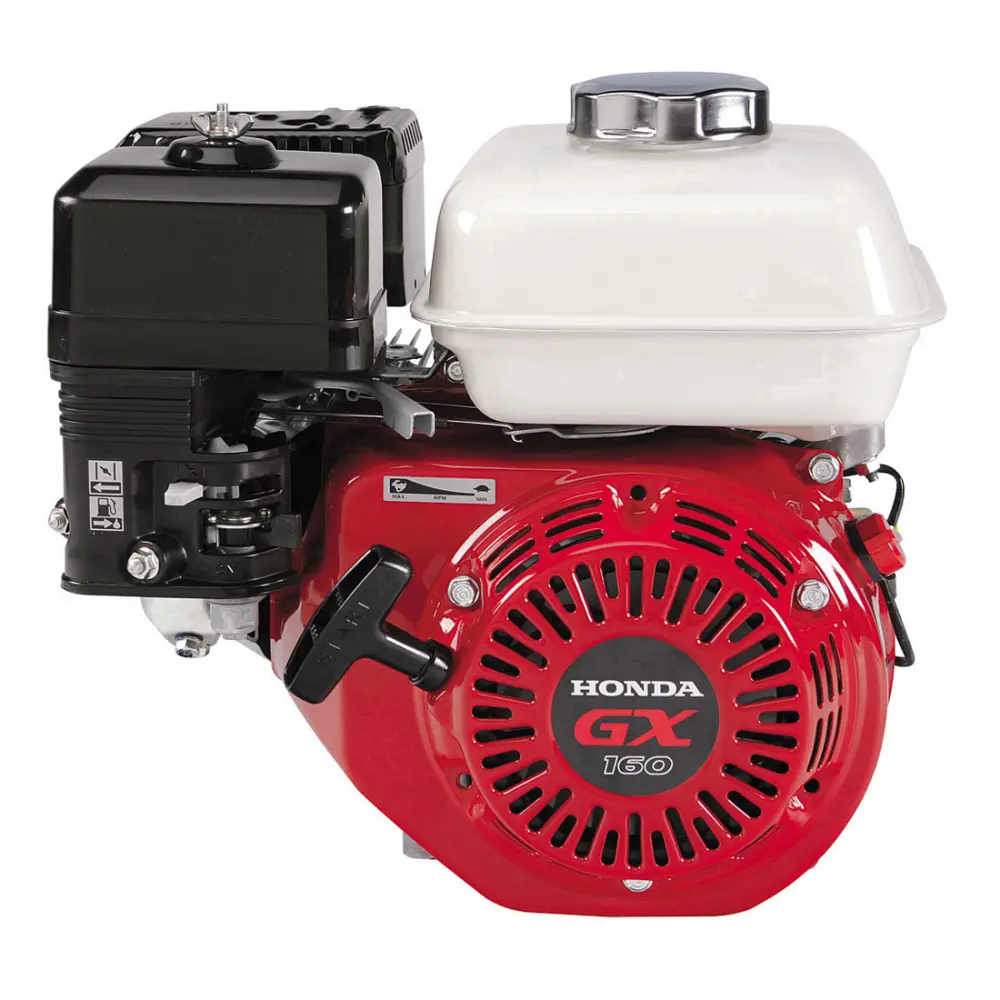

Honda GX160 Gasoline Engine 5.5 Hp
Code: GX160
Other information
Engine type HONDA GX160
4-stroke single-cylinder gasoline engine
CYLINDER SHAFT DIAM 19.05 MM
Cylinder typeCast iron cylinder
Bore x Stroke 68 x 45 mm
Displacement163 cm³
Compression ratio9.0 : 1
Net power 3.6 kW (4.8 HP) / 3600 rpm
Continuous rated power 2.5 kW (3.4 HP) / 3000 rpm
2.9 kW (3.9 HP) / 3600 rpm
Maximum torque 10.3 Nm / 1.05 kgfm / 2500 rpm
Fuel tank capacity3.1 Liters
Fuel consumption at continuous power 1.4 L/h - 3600 rpm
Oil sump capacity0.6 Liters
Dimensions (L x W x H) 312 x 362 x 346 mm
Dry weight15.1 kg

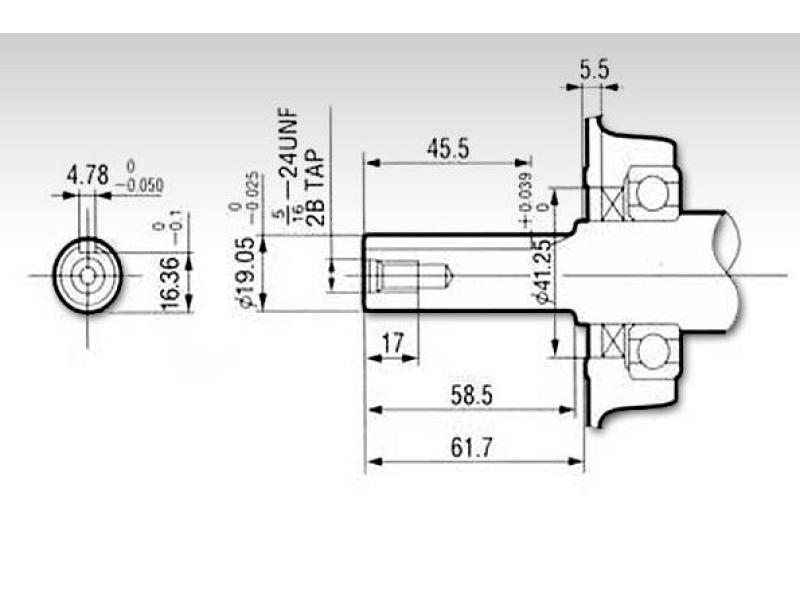

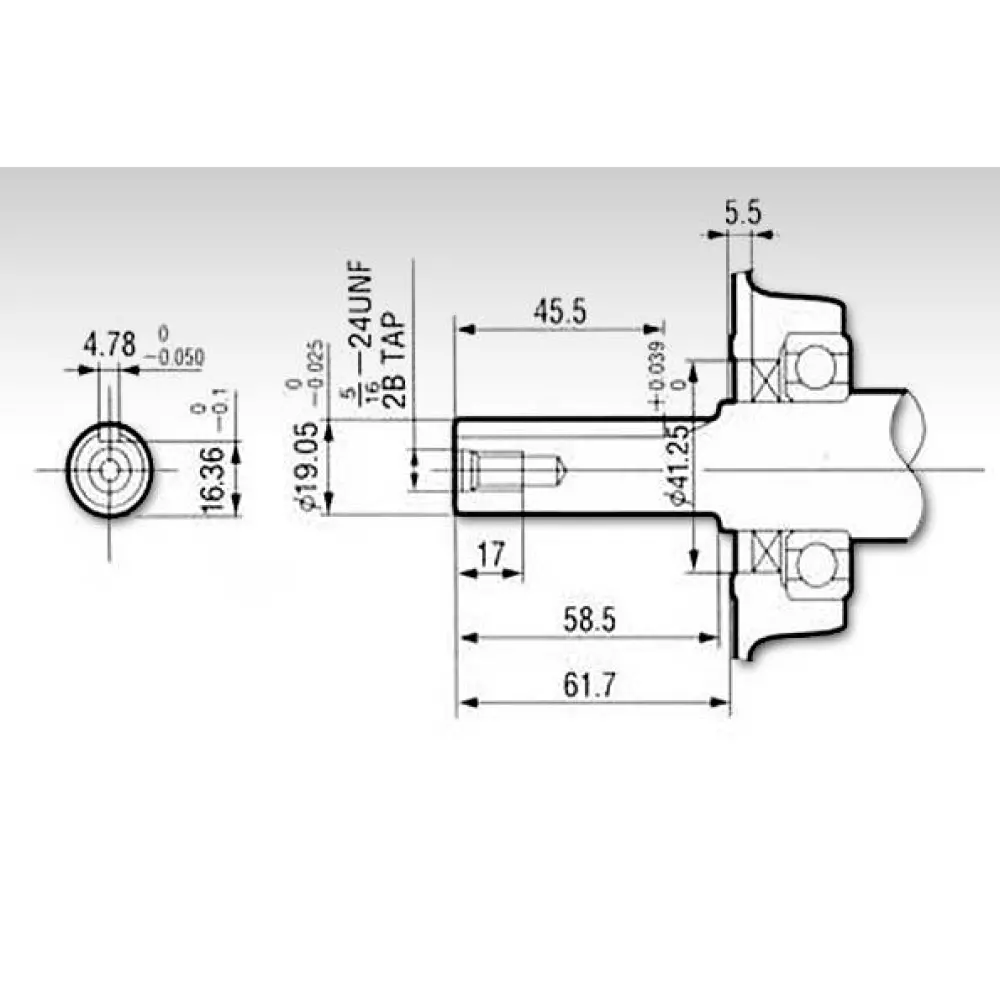

Cylindrical shaft
Honda GX 160
GX200 motors are recommended for a wide range of professional machines in shipbuilding, agricultural machinery, power generators, motors, motors, and other industrial applications.
Engine Characteristics:
The OHV configuration ensures very efficient combustion.
Power ratio - high displacement.
Easy and light starting, thanks also to an efficient decompression system and an ergonomic starter handle.
High quality materials, designed and built to last for a long time.
The engines comply with all the most stringent regulations in the world.
Fuel consumption is very low.
Reduced vibration and noise.
