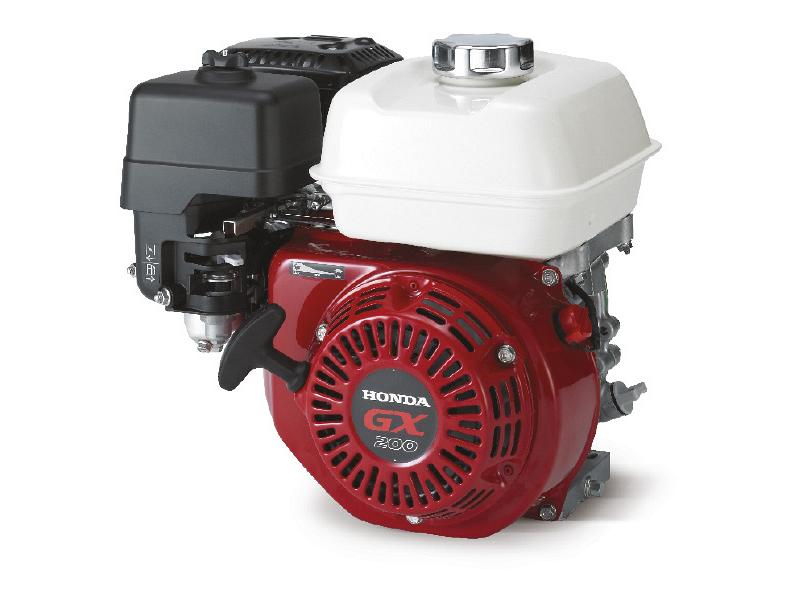

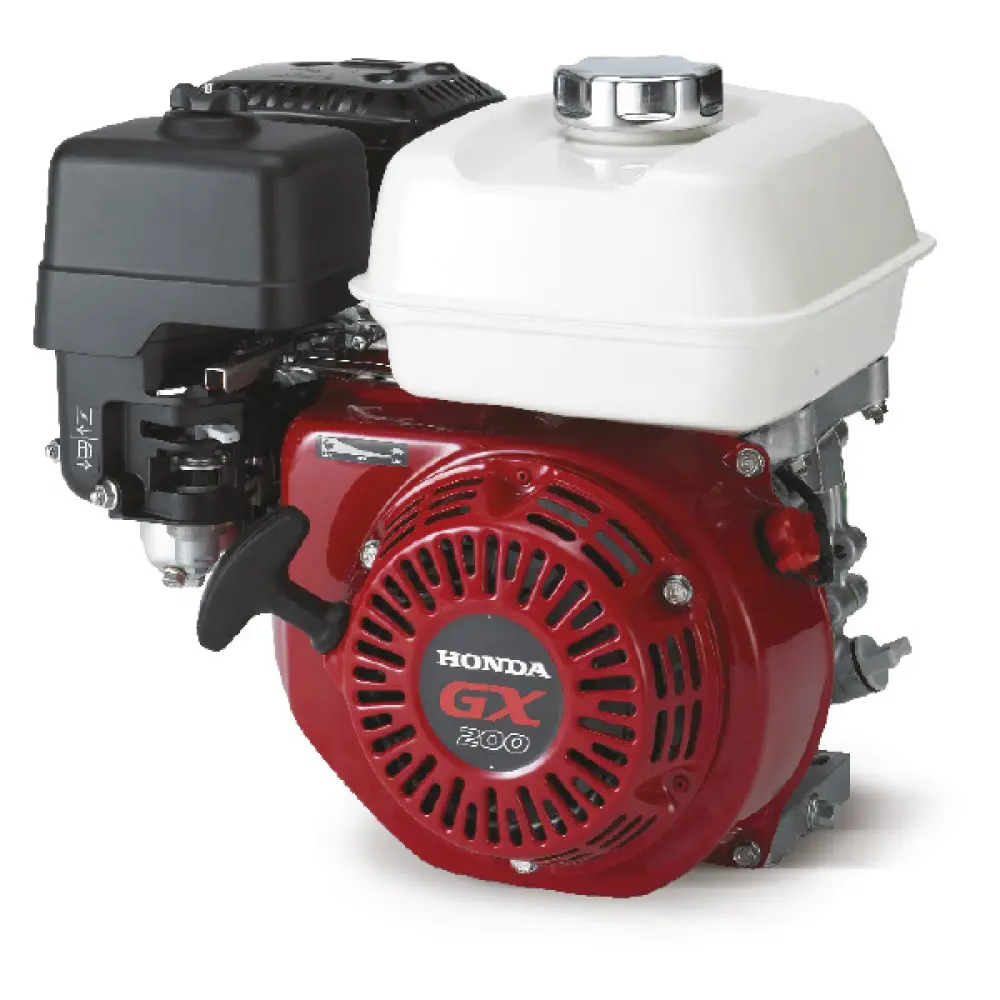

Honda GX200 Gasoline Engine 6.5 Hp
Code: Gx200
Other information
HONDA GX 200 GASOLINE ENGINE
Engine type Single-cylinder 4-stroke gasoline engine

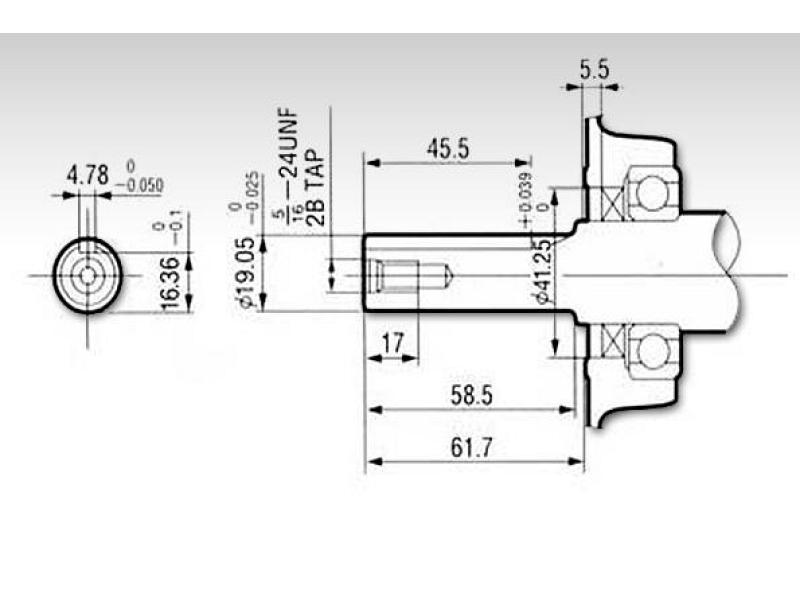

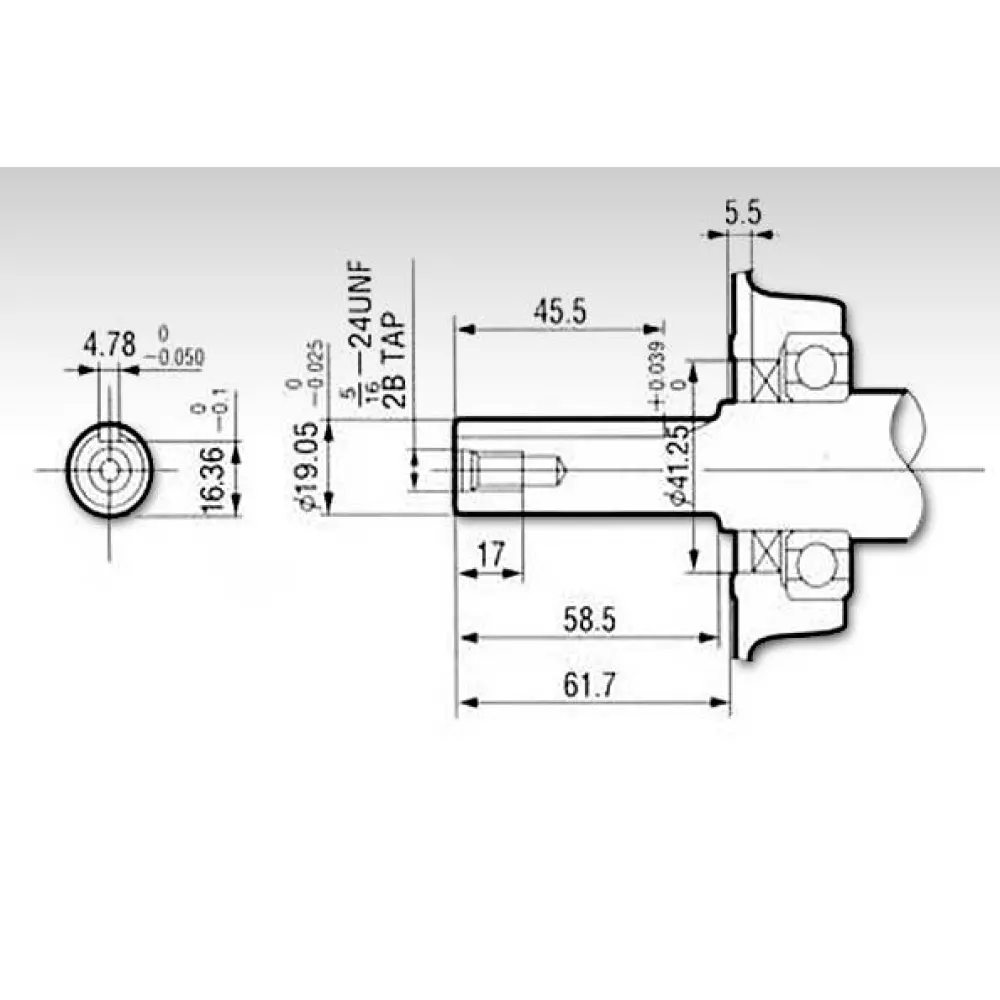

CRANKSHAFT: DIAM 19.05
cylinder inclined at 25°
horizontal shaft
Cylinder type Cast iron cylinder
Bore x Stroke 68 x 54 mm
Displacement 196 cm³
Compression ratio 8.5 : 1
Net power 4.1 kW (5.5 HP) / 3600 rpm
Continuous rated power 3.3 kW (4.4 HP) / 3000 rpm
3.7 kW (5.0 HP) / 3600 rpm
Maximum torque 12.4 Nm / 1.26 kgfm / 2500 rpm
Ignition system Contactless transistor
Fuel tank capacity 3.1 Liters
Fuel consumption at continuous power 1.7 L/h - 3600 rpm
Oil sump capacity 0.6 Liters
Dimensions (L x W x H) 321 x 376 x 346 mm
Dry weight 16.1 kg
Cylindrical shaft
Honda
GX200 motors are recommended for a wide range of professional machines in shipbuilding, agricultural machinery, power generators, motors, motors, and other industrial applications.
Engine Characteristics:
The OHV configuration ensures very efficient combustion.
Power ratio - high displacement.
Easy and light starting, thanks also to an efficient decompression system and an ergonomic starter handle.
High quality materials, designed and built to last for a long time.
The engines comply with all the most stringent regulations in the world.
Fuel consumption is very low.
Reduced vibration and noise.
