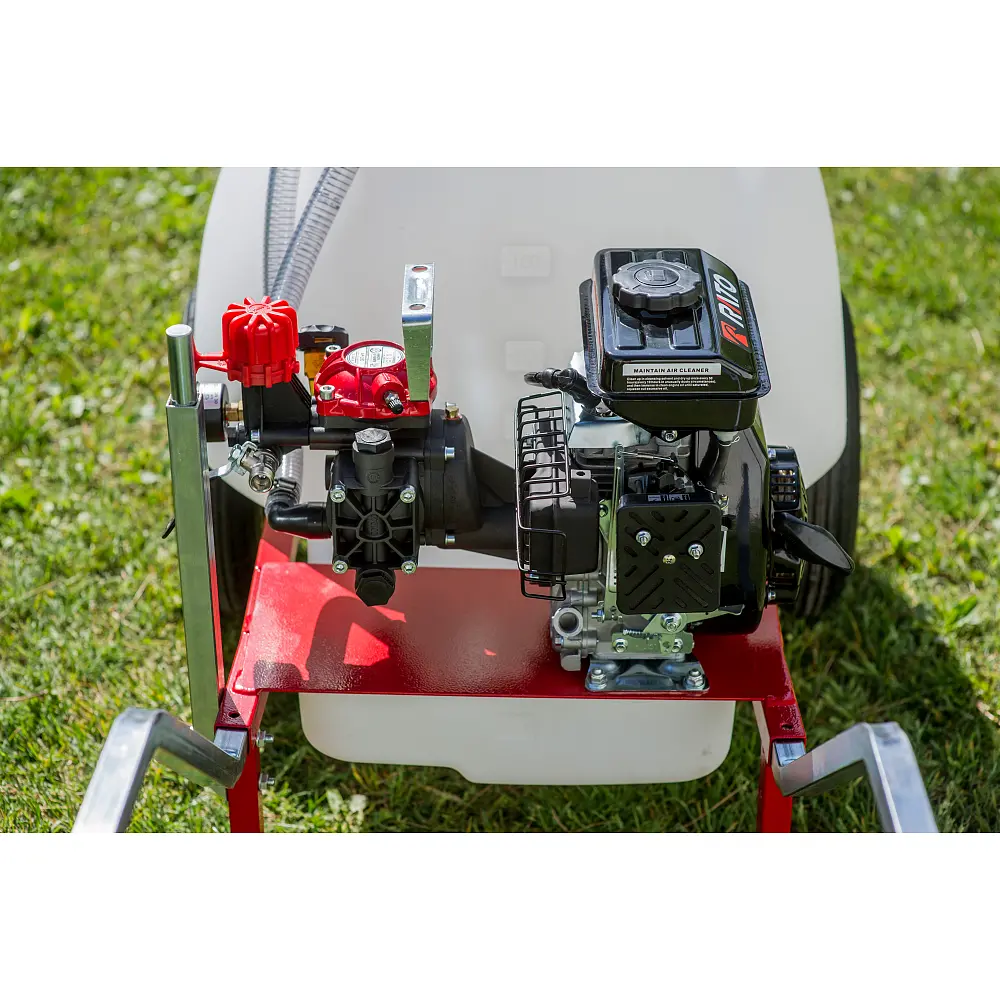

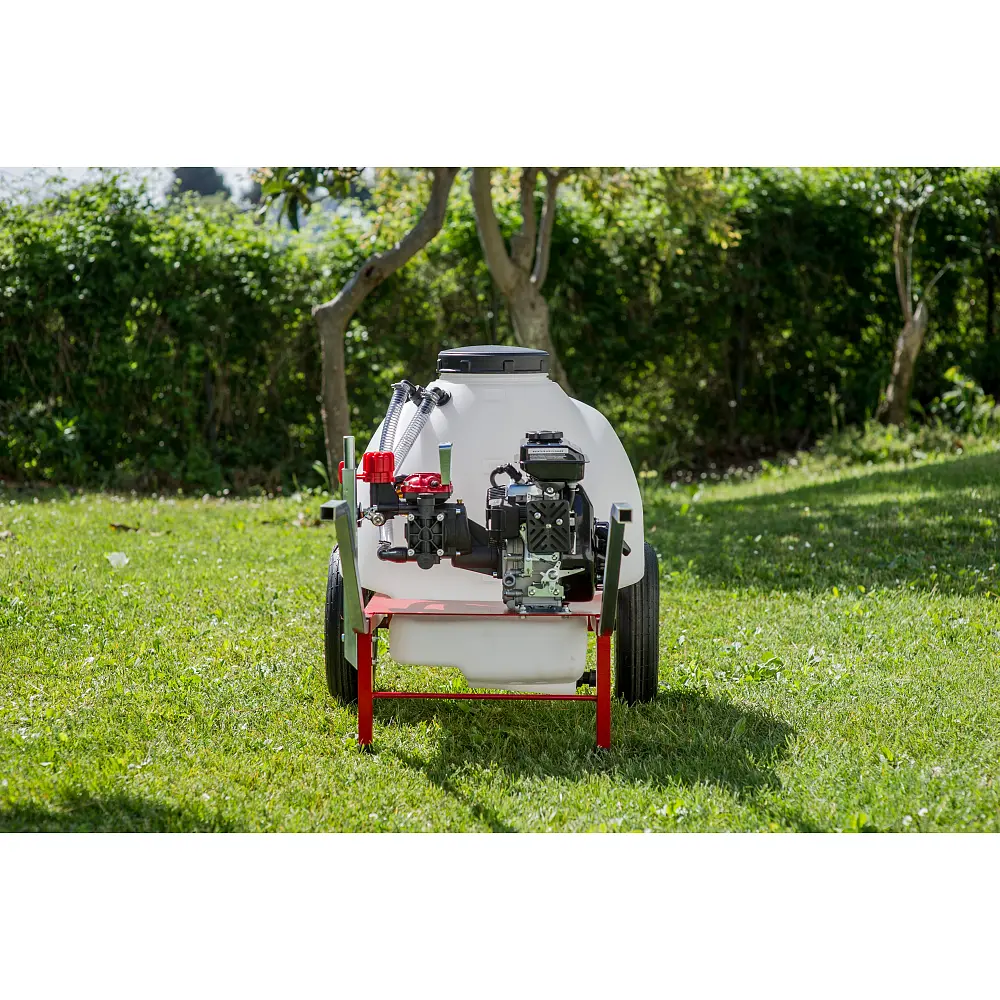

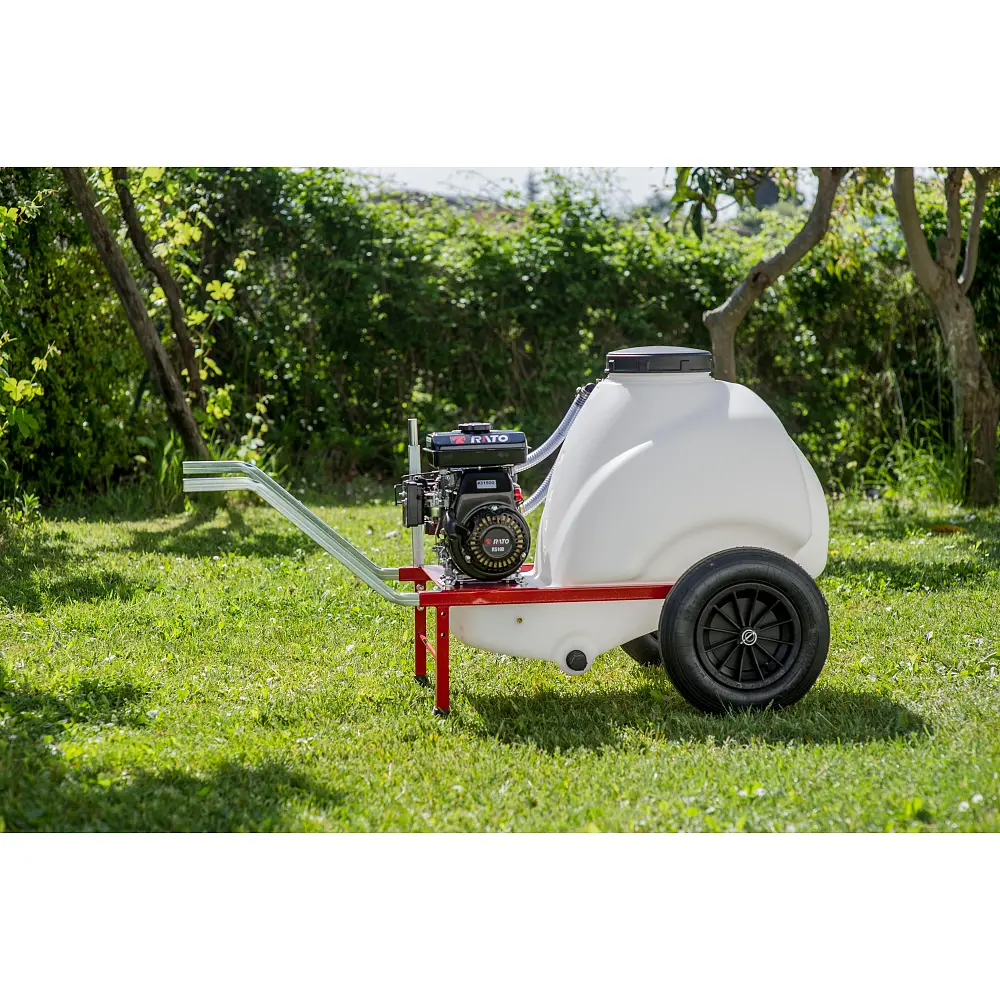

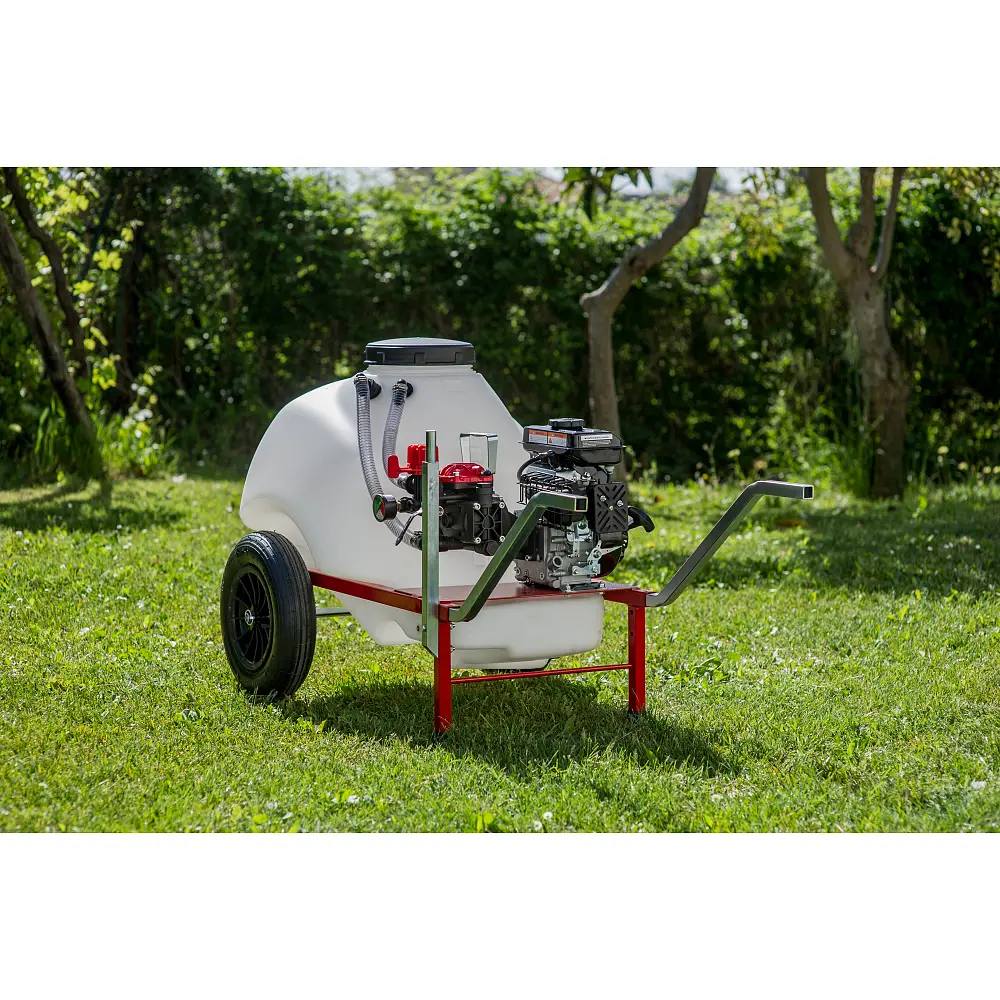

Trolley-mounted spray pump Water Spray Mod.M25-80
Code: PM2580
- :
- , , , , , , , , , , , ,
Other information
Many years of experience in building agricultural machines and the extensive know-how acquired over the years have enabled Sbaraglia to create ACQUA SPRAY, an innovative range of cart-mounted pumps for gardening, agriculture, weed control, and pest control.
Details
PUMP: 25 LT/MIN ANNOVI E REVERBERI (Made in Italy)
ENGINE: GASOLINE RATO 100 CC HP 2.5
TANK: 80 LT POLYETHYLENE
CONTROL UNIT: PROFESSIONAL WITH PRESSURE GAUGE AND REGULATOR
FREE GIFT:
20 m high-pressure hose 25 bar
01 Spray lance with adjustable nozzle
He's been banging since the 70's in the field of construction
Over many years of experience in the construction of agricultural machinery and the high know-how acquired over the years have enabled Sbaraglia to realize ACQUA SPRAY an innovative range of pumps for gardening, agriculture, disinfection and disinfestation.
Pump Annovi reverberi AR 252 Made in Italy
Alternative volumetric pump with two semi-hydraulic membranes with air chamber. Used in the semi-professional garden or agricultural sector, combined with electric motors or outbreaks on gardening trolleys, small irrigation machines for garden treatments, greenhouses, orchards or vineyards with medium pressure plant protection products. Contact the liquids pumped in anodized aluminum and stainless steel. NBR, Desmopan or Viton Rubber Membranes. Rubber Seals NBR or Viton.
Die-cast carter with oil-bath mechanics, transparent plastic tank for visual inspection of the level. Oil Drain Plug. With segment segment for greater efficiency of the membrane protection cushion system. Newly conceived membrane locking system to prevent contact lacerations even under harsh conditions of use.
Details Pump 25 l / min
-Portata 24.6 l / min
-pressure 25 bar
-Grams / min RPM 650
-direction of diam. 20
-Mandata diam.13

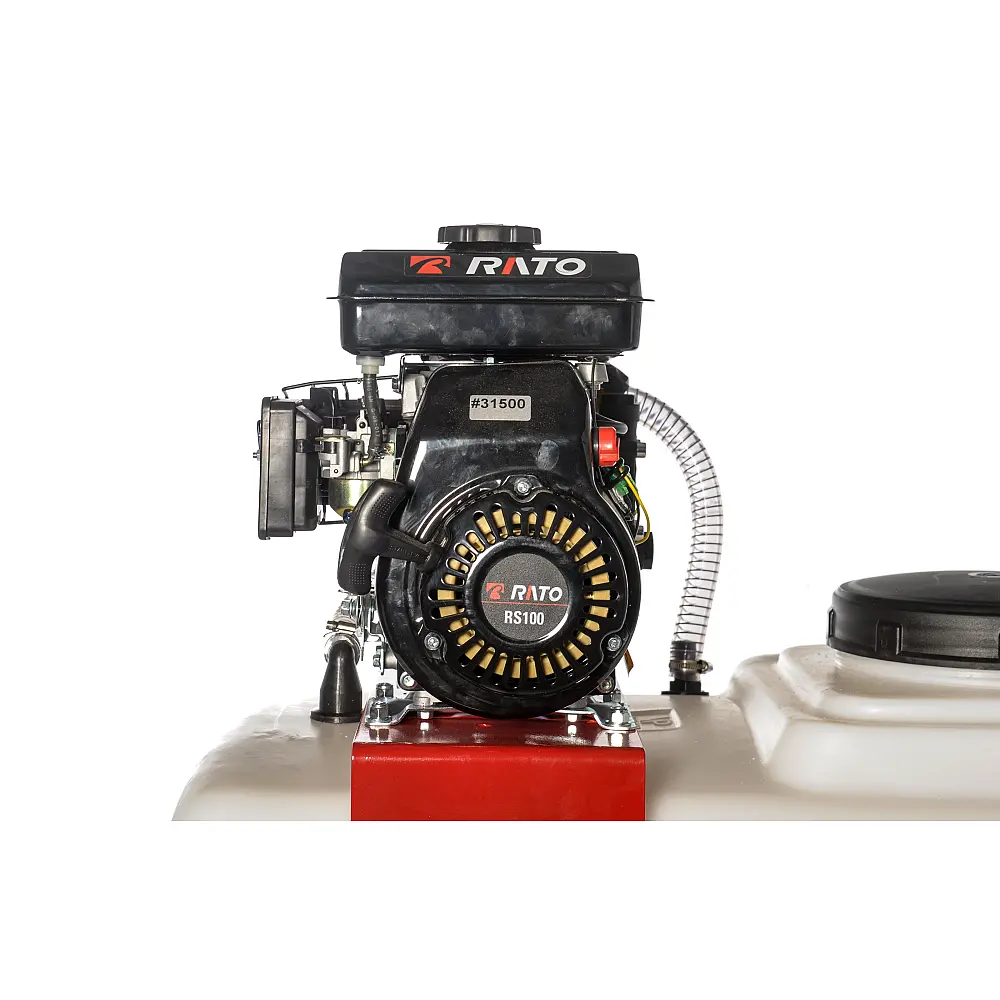

Engine Rated Hp 2.5
Professional 4-stroke engine with our WATER SPRAY PUMP pump the best of RATO's home.
The range of RATO engines is geared to highly professional uses (in agriculture, construction, gardening).

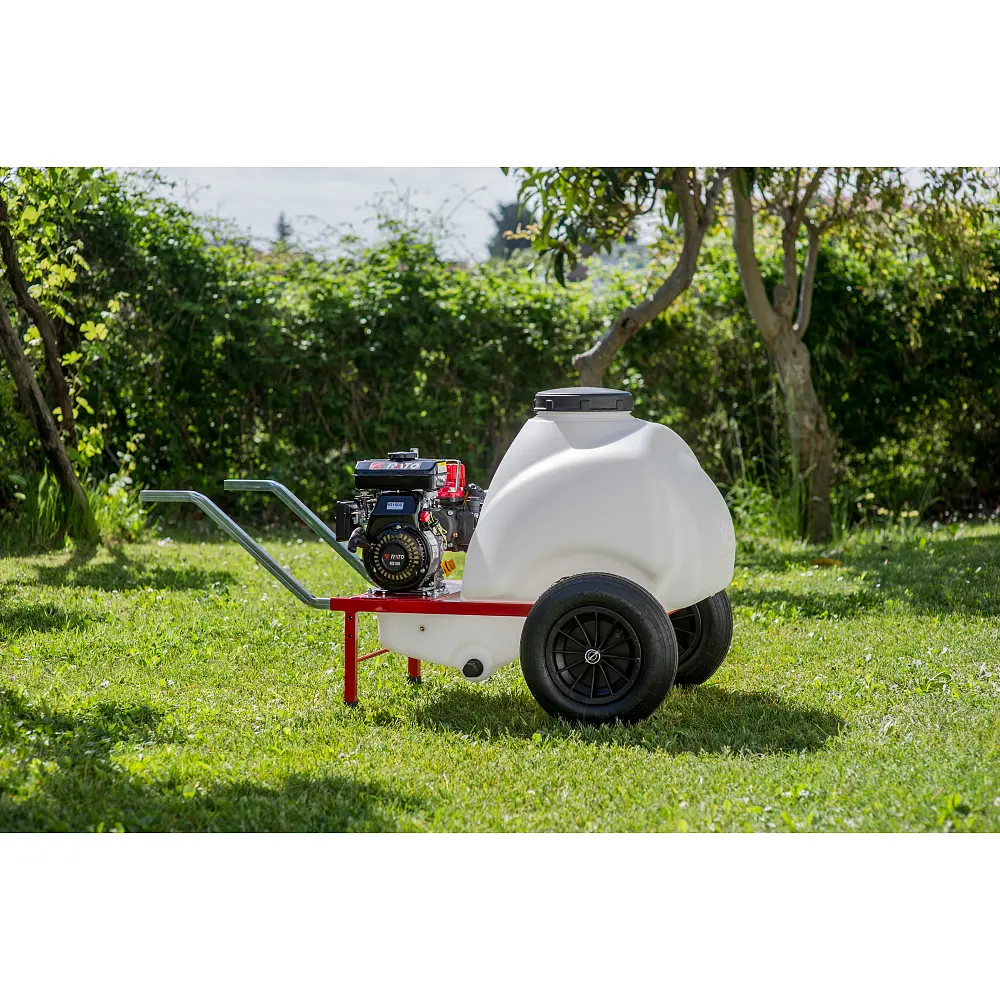

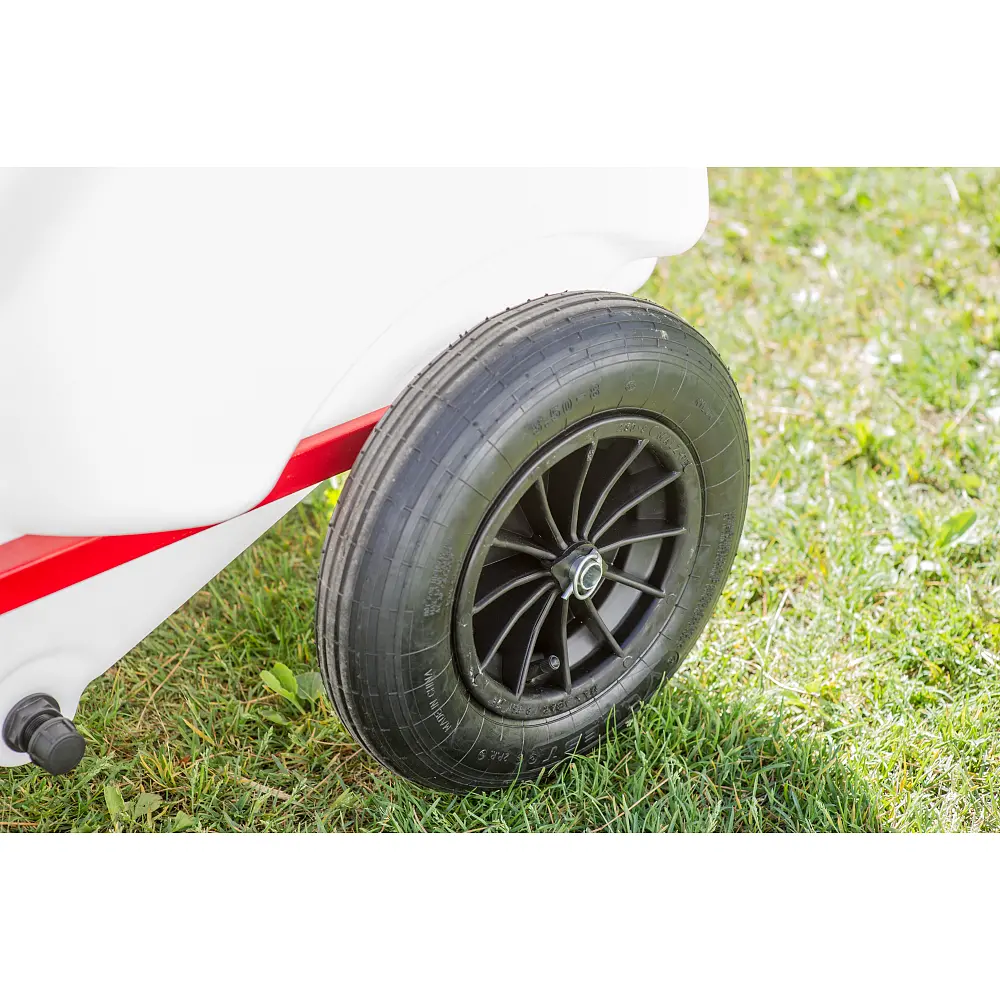

Great wheels
Inflatable wheelbarrow system with double wheel.

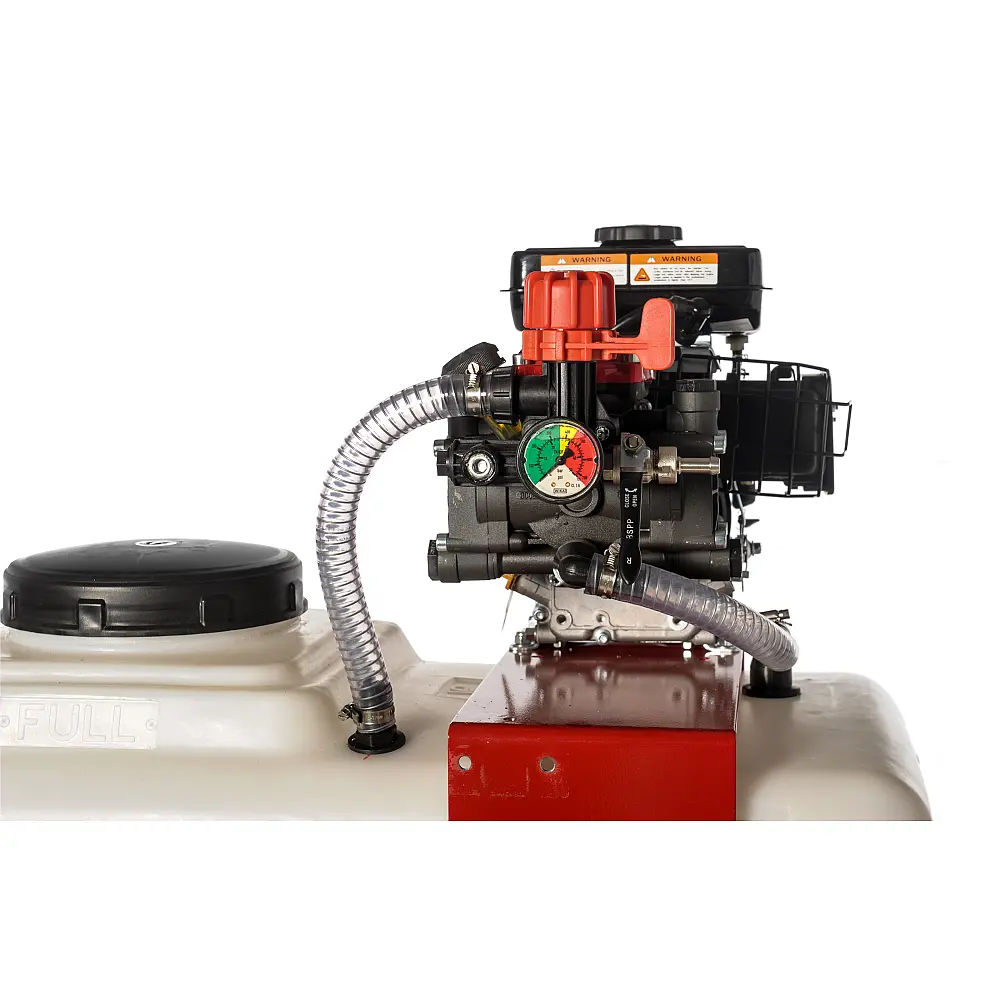

Pressure regulator PROFESSIONAL mode VRI Annotation and Reverberi
Many commercially available Motopumps use small and scarce regulators that are unsuitable for pressure regulation.
Our SPARY WATER PUMP PUMP uses the Annive PROFESSIONAL regulator and reverberates MOD VRI with the following technical details:
- GRANDE MANUAL
-PRODUCTED REGULATOR
-GLICHERMOMETER TO VIEW PRESSURE
-MANDED CONTROL TUBE
MADE IN ITALY

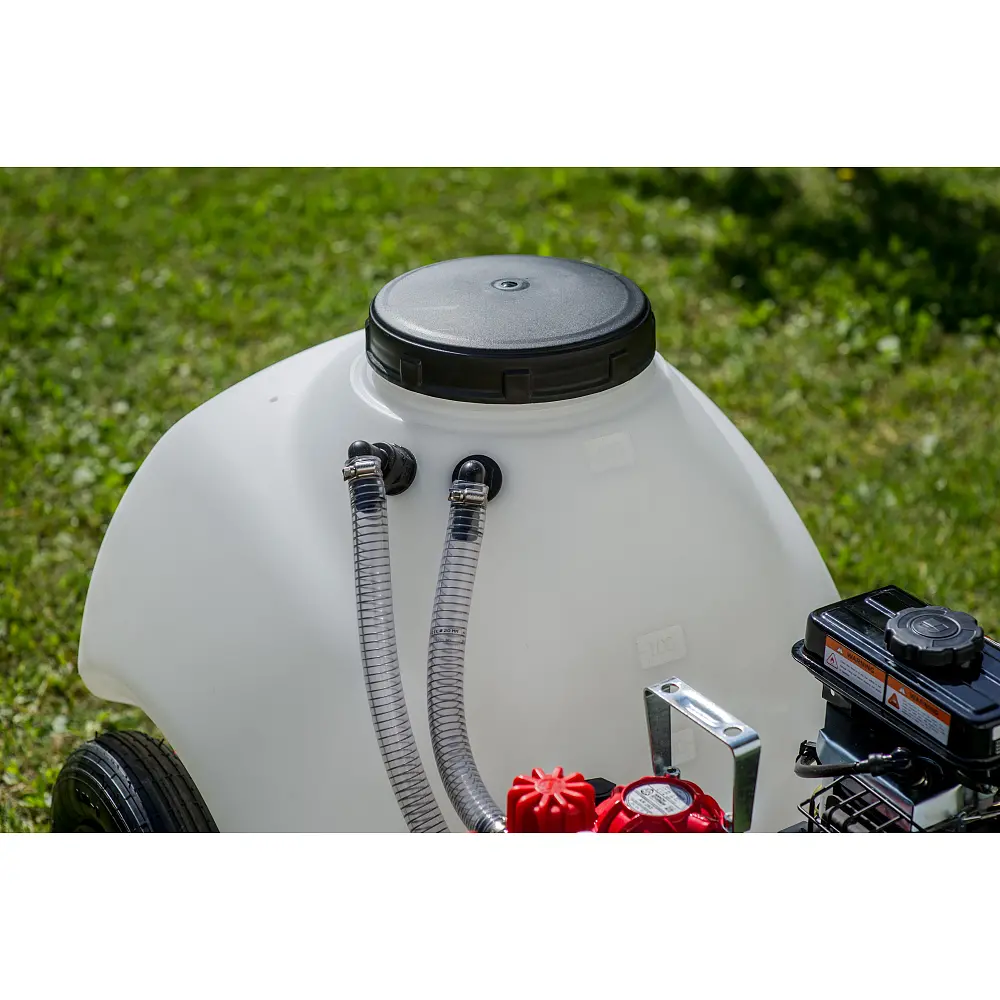

80 lt polyethylene tank
Super-strong, acid-proof tank with total drainage.
Double galvanized handles for transport
fast release hook to facilitate transport.
Iron structure with powder coating
Prior to painting, the Chassis of the Motopompa is subjected to thorough checks
- Fine sanding
- Wash at high temperatures
- Powder coating
The care of these phases guarantees a brilliant and unequivocal design of the machine
Motopump with hose reel (not included)
Bracket hose with bracket not included (optional)
Light and practical
You can carry it anywhere you want, super light and handy!
Undoing hose reel: Optional

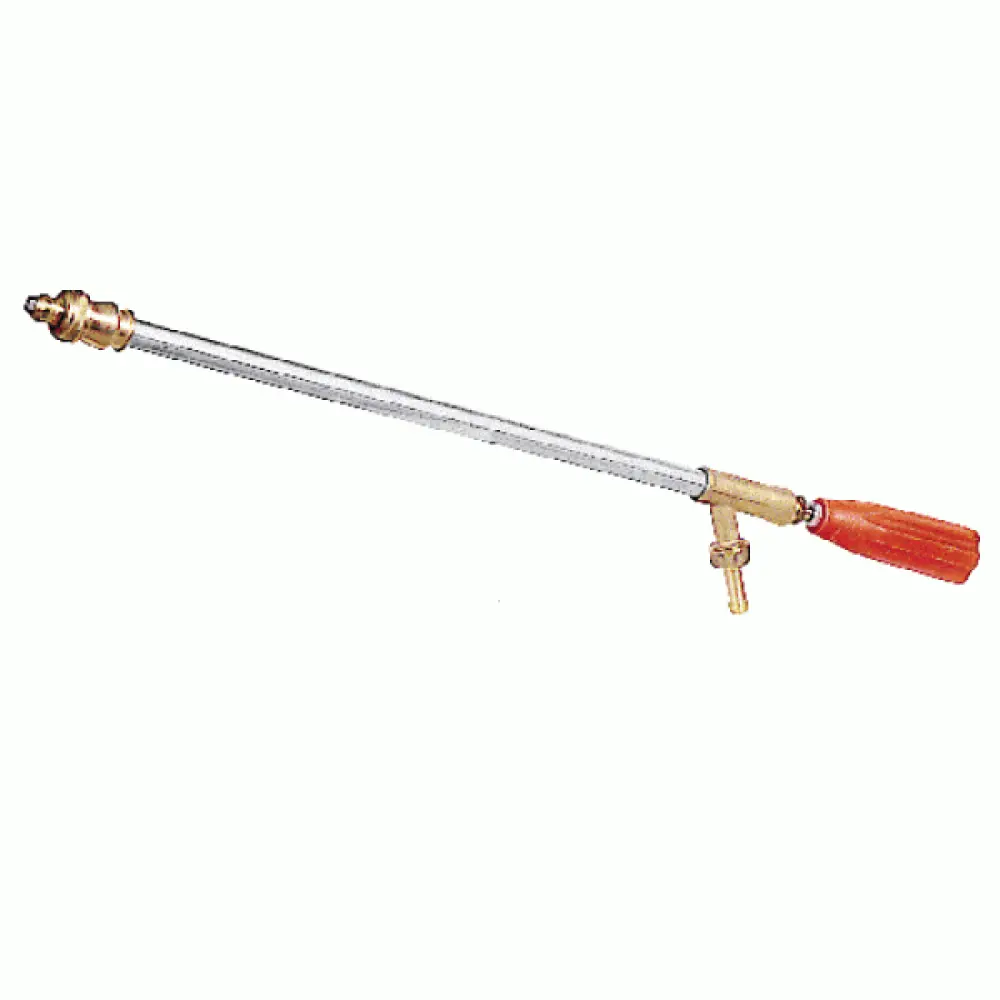

Launch OMAGGIO sprayer
Launch sprayer with adjustment handle

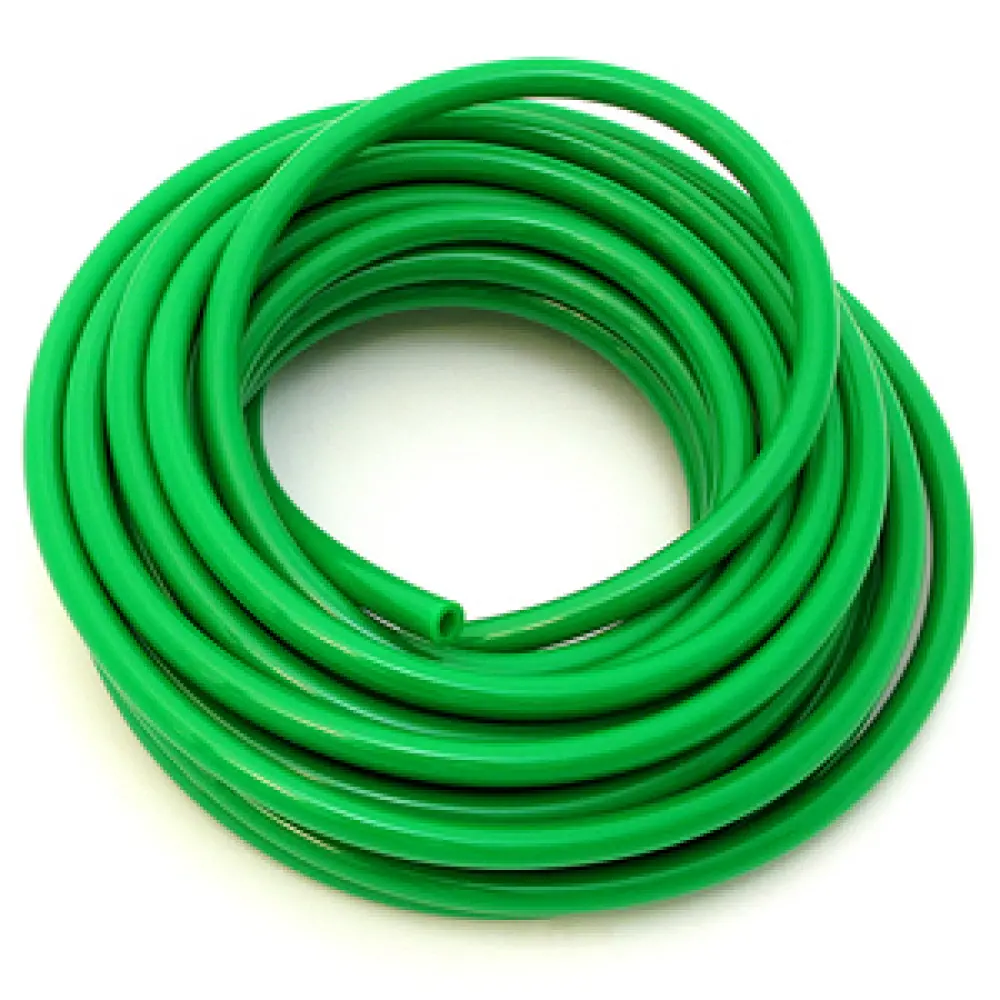

20 MT High Pressure Hose PRESSURE
High pressure hose 25 BAR with fittings included in the price.
Color tube: green - red - blue (depending on availability)
